The Dynamic Racing Transmission's C6 Full Manual Reverse Pattern Valve Body is the perfect choice for drag racing, Off- Road racing vehicles that want complete manual control over shifts or where a transbrake is outlawed by class rules.
This valve body has no engine braking function.
Full manual control enables the driver to have complete control over when the transmission shifts. The reverse pattern prevents you from shifting into reverse by changing the pattern from P-R-N-D-2-1 to P-R-N-1-2-D!
We start with a fully inspected valve body core that is completely disassembled, jet washed and then machined for better oil flow and manual control.
We then modify the internal valves and add a new separator plate with special hole sizes to meter fluid flow and block off unnecessary passages.
Once assembled, it goes on our in-house dyno and gets run through all the gears while shift pressures are monitored.
After receiving the OK, it gets bagged and boxed up for shipping anywhere in the world.
NOTE: Due to the dwindling supply of usable cores, we are forced to add a charge for us to provide a core to start with. If you have a usable core, please contact us about sending it in for inspection and use.
Please check your case before ordering
Select Clicker style or Slider style on the option list. A clicker valve body has a manual valve that is held in place by the detent selector in the valve body.

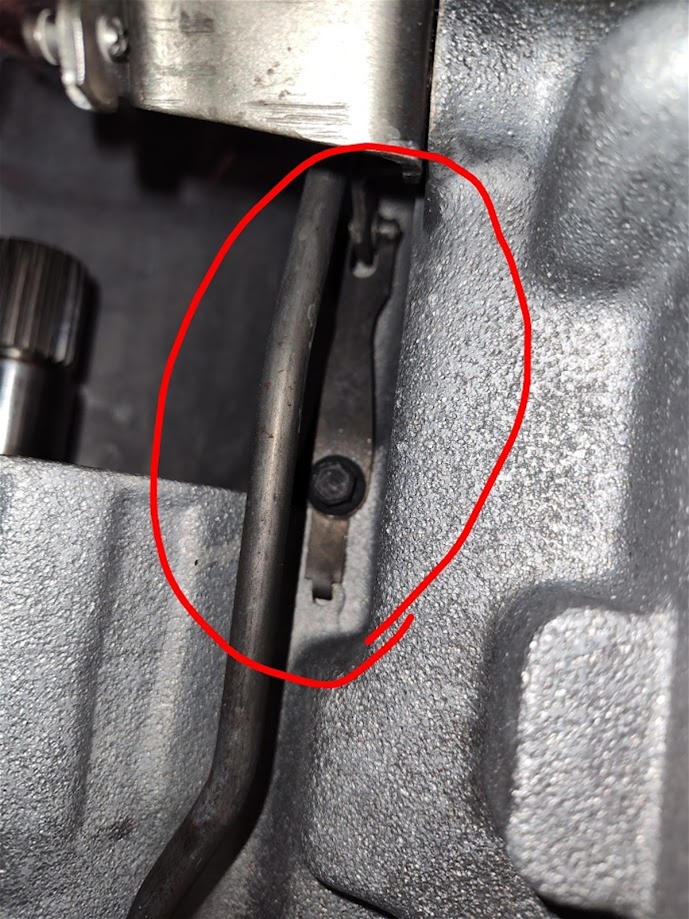

The Slider style has a rooster comb selector installed on the inside of the shift arm and a leaf spring detent roller bolted to the case.
Fits 1968-1/2 and up C6
