C6 Pro Brake Valve Body for 1969- up clicker and non clicker cases
The Dynamic Racing C6 Pro Brake is a reverse pattern manual valve body with our famous Pro Brake installed.
The Low/reverse clutch is applied for engine braking in 1st gear and for sprag protection.
Like our C4 Pro Brake, you do need to push the brake button to engage reverse.

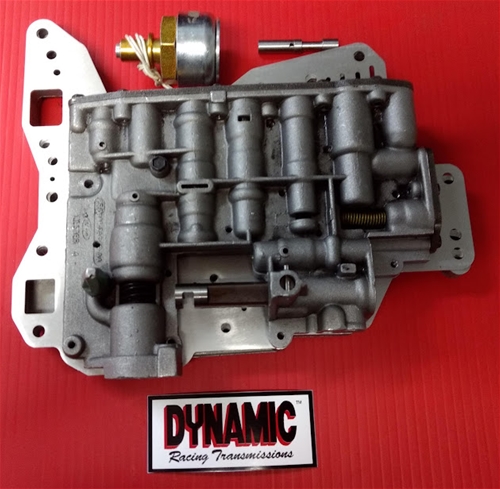

The kit includes the modified valve body complete with our custom made separator plate, Push-in External 12volt solenoid, Brake valve and complete instructions.
Each unit is dyno tested before shipping to ensure full function and eliminate installation issues.
A CORE IS REQUIRED TO BUILD YOUR BRAKE!
Installation requires either an aluminum servo piston to be installed or installation of the Superior K016 Super Servo available separately.
Please check your case before ordering
Case may have either the rooster comb selector installed on the inside of the case, or have the shift detent built into the valve body aka "Clicker".
Please select the option for the valve body you need.

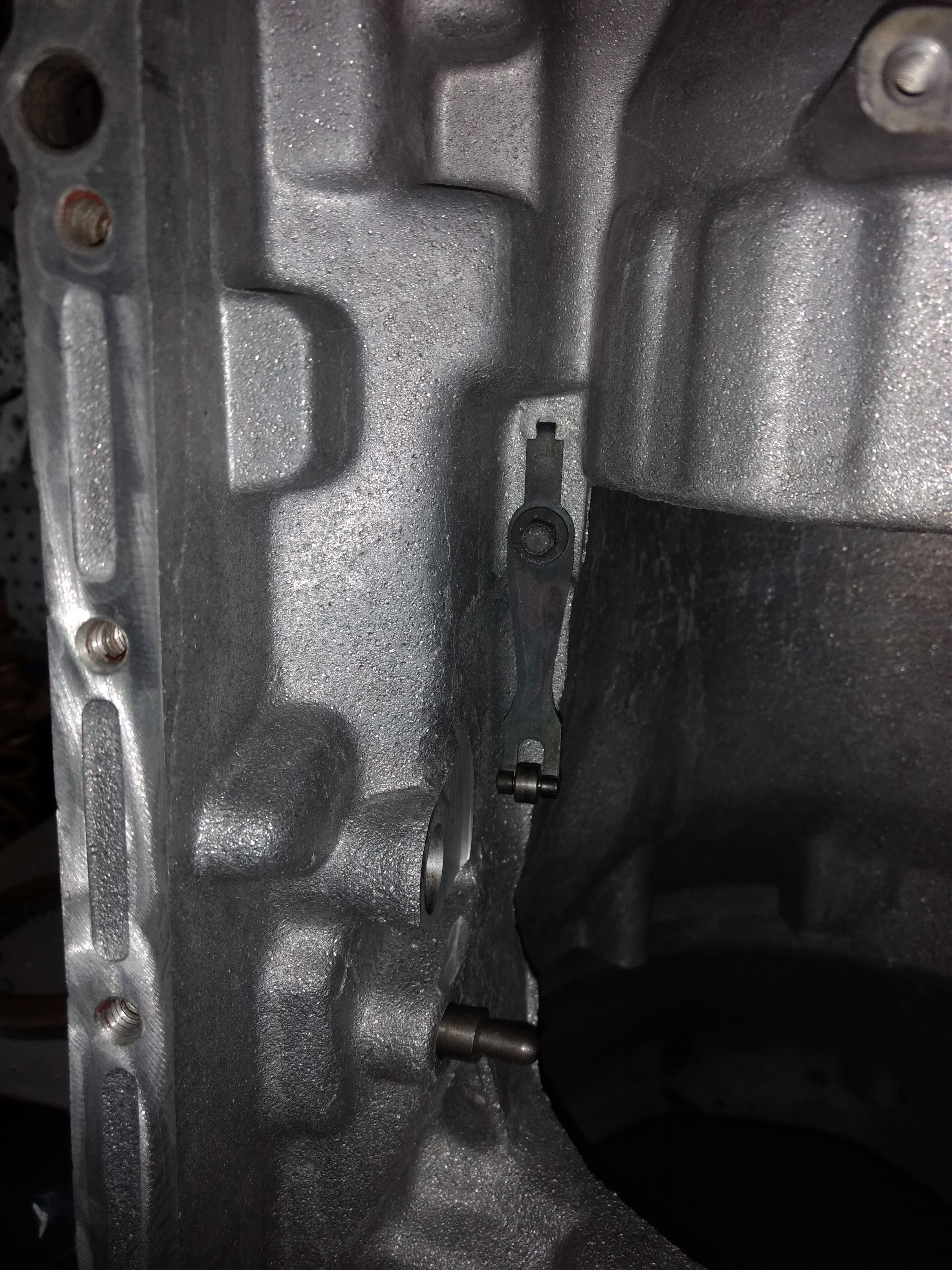

The Detent selector spring is shown in the photo below
Also, must have a push in vacuum modulator, not screw in.
