Dynamic Racing Transmissions has traditionally been the innovator and problem solver when it comes to automatic transmissions.
These new Banjo Cooler Line Fittings are the latest example of our quest to solve racer's issues.
For years we have be told about the problems of mounting braided AN hose to run cooler lines in vehicles with tight clearances around the tunnel area.
By the time you add the standard case adapter, then the hose end, you are out of room and it rubs or simply will not fit.

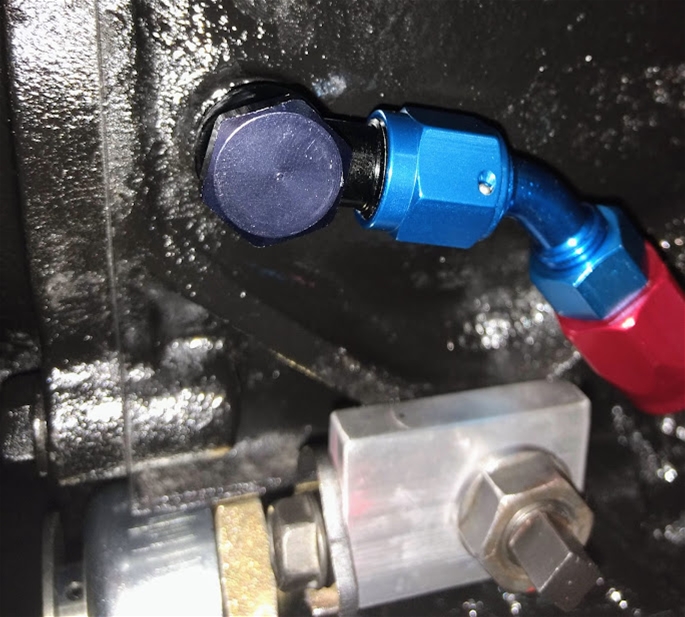

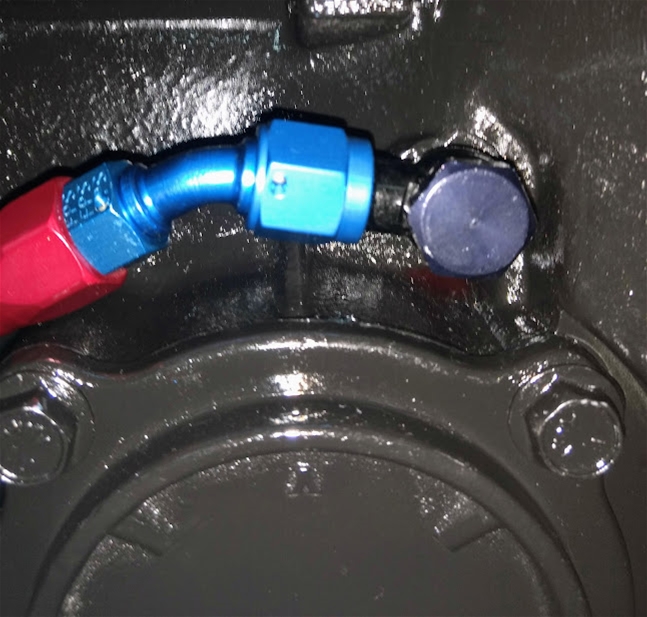

So we decided to create a banjo fitting with the correct NPS threads and a 6AN male attachment to allow the routing of the hose assembly closer to the case, enabling the use of stronger Braided Hose to contain the pressures of the fluid on its way to the cooler.
Each fitting is made from Aircraft aluminum and is anodized black.

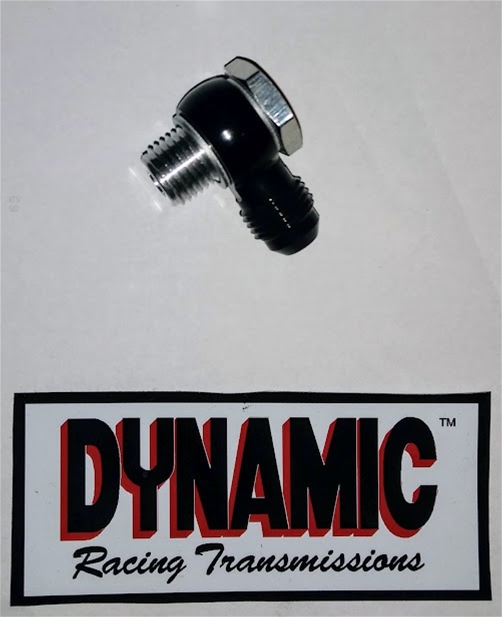

The combined flow of the special banjo bolt and ring is equal to the flow of a standard case fitting, so there is no restriction.

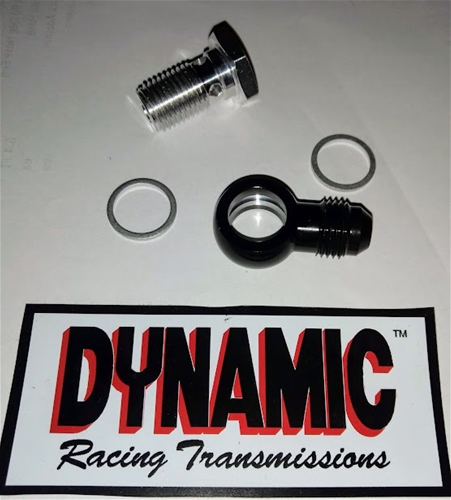

The kit consists of:
1 - 6AN Male Banjo Adapter
1- 1/8" NPS threaded Banjo Bolt
2 - Aluminum Crush Washers
NOTE: Red/Blue Hose End not included
