The Dynamic Racing Transmissions C4 Pan Fill Dipstick kit was designed to solve the issue of stock dipstick tube interference with aftermarket headers in tight clearance vehicles such as Mustangs and Falcons.
Our kit is designed to work with a cast aluminum deep pan and the 70 and up Ford C4 Pan Fill Transmission Case.
This kit incorporates a locking dipstick to meet sanctioning body rules.
Installation requires the use of a 7/8" drill bit which can be purchased here, or at your local hardware store.
Features

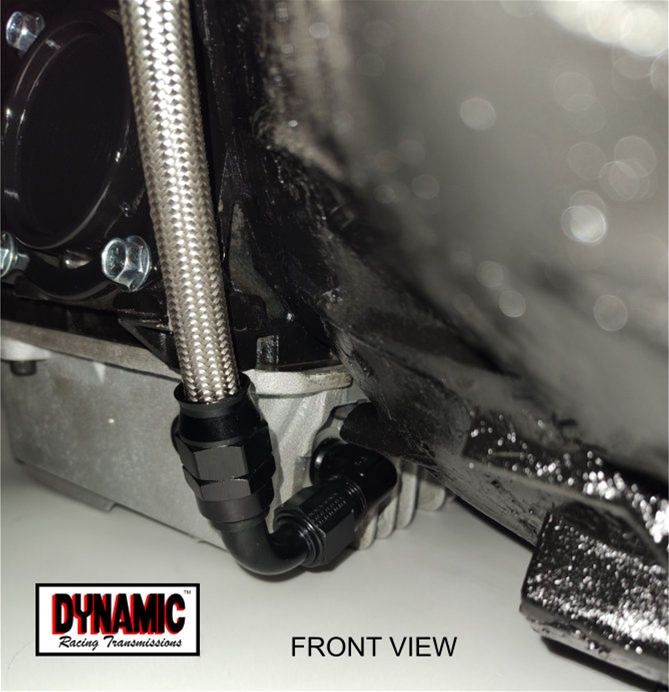

- Compact design eliminates the interference with modified exhaust by mounting the filler to the front of the pan.
- Utilizes PTFE lined braided stainless steel hose with a 1/2" ID, making refills quick and easy.
- USA made black anodized AN hardware for perfect seal and corrosion resistance.
- Bulkhead through pan design seals using Nylon washers.
- Metal, Not Teflon, Locking calibrated dipstick meets sanctioning body rules and is easier to read.

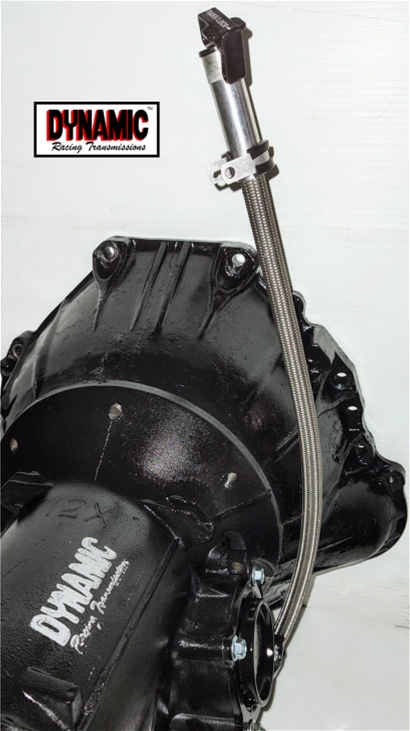

- Cushioned clamp supplied to firmly attach top of tube to firewall.
- Optional Aluminum Mounting Bracket for Bell Housing Mounting Available
- Top dipstick receptacle is bonded to the braided hose.
- No Funnel Adapters Necessary!
